‹ Home › Inventory › Heritage Classic in Alpine Green

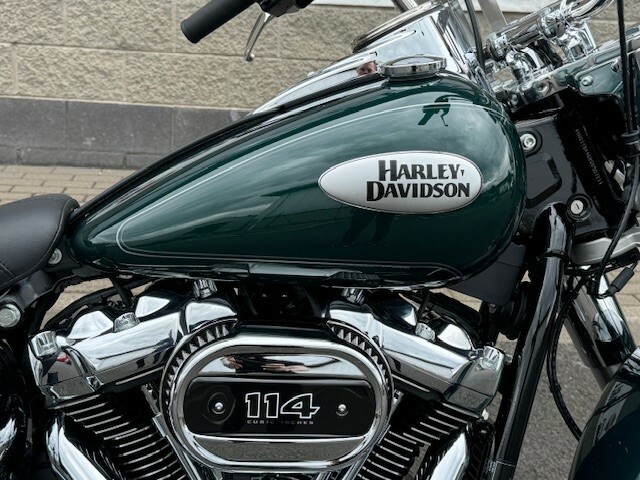

A quintessential American cruiser, the Harley-Davidson Heritage Classic 114 has showstopping vintage details and pure rock ‘n’ roll style. Loads of torque for on demand power from the Milwaukee-Eight® 114, easily adjusted high performance rear mono shock suspension. Detachable windscreen, lockable sealed saddlebags, spoked wheels for that proper heritage look

Specifications

Dimensions

add remove
- Length:

  95.1 in
- Seat height, unladen:

  26.8 in
- Ground clearance:

  4.7 in
- Rake:

  30
- Trail:

  5.5 in
- Wheelbase:

  64.2 in
- Tyres, front specifications:

  130/90B16,73H,BW
- Tyres, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  4.2 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  697 lbs
- Weight, in running order:

  728 lb
- Luggage capacity – volume:

  1.5 cu ft (0.043 m³)
- Tyre, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.7 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  94 HP / 70 kW @ 4750 rpm
- Lean angle, right (deg.):

  27.3
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions:

  128 g/km CO₂
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum
- Wheels, rear type:

  Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp, Incandescent Zeppelin tail lamp, Incandescent bullets, Incandescent bullet light bar
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
