‹ Home › Inventory › EX DEMO FAT BOB 114 747 MILES

Sold

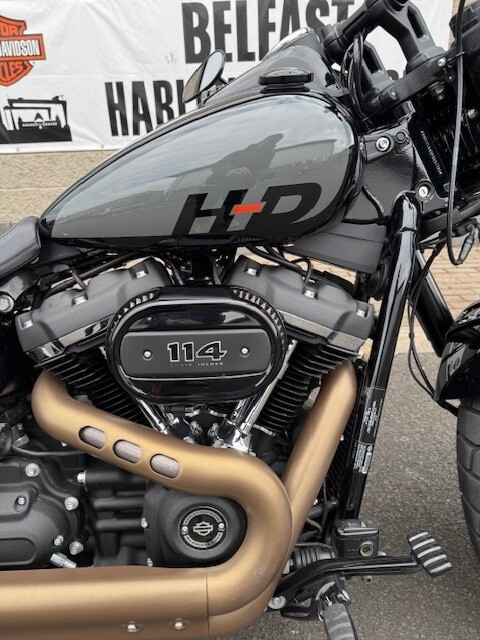

Here is our Ex Demo Fat Bob for sale with only 747 miles , now a discontinued model. Thee 114 engine will give you everything and more , the fat front tyre gives you that aggressive street bike look, cruise all day and turn heads

Specifications

Dimensions

add remove
- Length:

  92.1 in
- Seat height, unladen:

  28.0 in
- Ground clearance:

  4.7 in
- Rake:

  28
- Trail:

  5.2 in
- Wheelbase:

  63.6 in
- Tyres, front specifications:

  150/80-16,71H,BW
- Tyres, rear specifications:

  180/70B16,77H,BW
- Fuel capacity:

  2.9 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  653 lbs
- Weight, in running order:

  675 lb
- Tyre, type:

  Dunlop™ Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.0 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  93 HP / 69 kW @ 5020 rpm
- Lean angle, right (deg.):

  31
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.00 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions:

  128 g/km CO₂
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
- Wheels, front type:

  Denim black, Structure cast aluminum with laser etched graphics
- Wheels, rear type:

  Denim black, Structure cast aluminum with laser etched graphics
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
