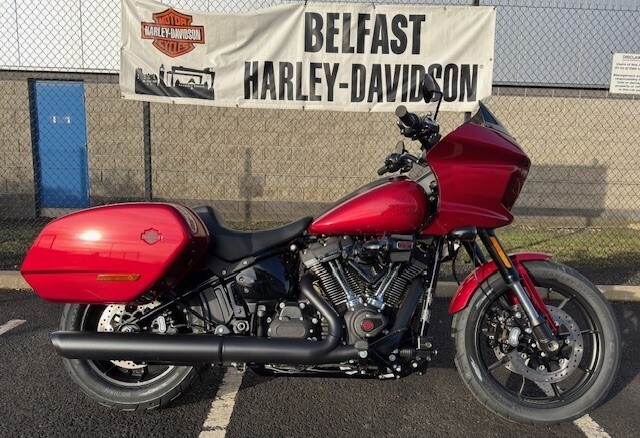

‹ Home › Inventory › Brilliant Red Low Rider ST Black Finish

Low Rider ST in the stunning colour option Brilliant Red metallic and Black finish. Packed the latest version of the 1923cc Milwaukee-Eight V-twin, The Low Rider ST has been knocked up a notch, with a raft of upgrades including a hike in performance, drop in weight, and improvements to both lighting and electronic rider aids. ABS, TCS, and the Drag-Torque Slip Control System DSCS, Powered by the Milwaukee-Eight 117 H.O. (High Output) motor to give it even more oomph. Among other tweaks, a slight increase in boosted power by 13bhp and given it a couple more ft-lb of torque, and with the redline redrawn at 5,900 rpm there are 300 more revs to play with too. Power, Performance and handling, what more could you ever want

Specifications

Dimensions

add remove
- Length:

  92.9 in
- Seat height, unladen:

  28.1 in
- Rake:

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tyres, front specifications:

  110/90B19,62H,BW
- Tyres, rear specifications:

  180/70B16,77H,BW
- Fuel capacity:

  4.2 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  686 lbs
- Weight, in running order:

  712 lb
- Luggage capacity – volume:

  2 cu ft (0.056 m3)
- Tyre, type:

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 High-Output
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  128.3 ft-lb
- Engine torque (RPM):

  4000
- Horsepower:

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
