‹ Home › Inventory › Street Bob low miles in Redline Red

The Street Bob 114 is a stripped down for the street cruiser, The 114 engine has power and loads of torque for on-demand power you can feel with each twist of the throttle, accompanied by that evocative H-D sound. The frame retains classic Softail lines, and its stiff and lightweight design allows for a responsive ride unlike anything you have felt before. Annihlator Wheels, Six-spoke cast wheels with fierce lines command attention and accentuate the custom look of this bob. Seating for two with passenger pegs and pillion. A perfect performance base for customization, the Harley-Davidson Street Bob 114 is a gritty, lean, and mean bobber cloaked in black.

Specifications

Dimensions

add remove
- Length:

  91.3 in
- Seat height, unladen:

  26.8 in
- Ground clearance:

  4.9 in
- Rake:

  30
- Trail:

  6.2 in
- Wheelbase:

  64.2 in
- Tyres, front specifications:

  100/90B19,57H,BW
- Tyres, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  2.9 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  631 lbs
- Weight, in running order:

  655 lb
- Tyre, type:

  Dunlop™ Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.7 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  94 HP / 70 kW @ 5020 rpm
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.00 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions:

  128 g/km CO₂
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, optional style type:

  Gloss Black, Steel Laced
- Wheels, front type:

  Black, Annihilator cast aluminum
- Wheels, rear type:

  Black, Annihilator cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel

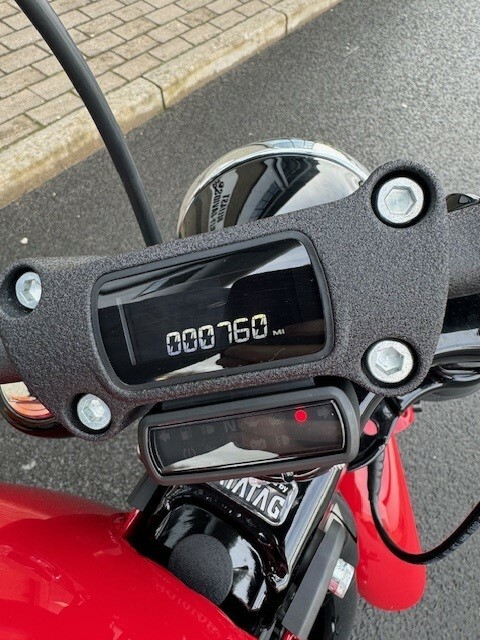

- Gauges:

  2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
